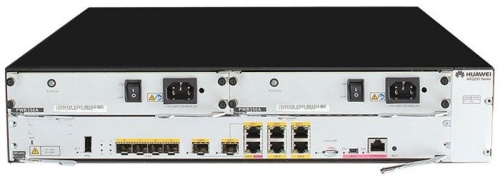

Маршрутизатор Huawei AR2240 AR0M0024EA00

Маршрутизатор Huawei AR2240 AR0M0024EA00

Описание товара

Маршрутизатор Huawei AR2240 AR0M0024EA00

3G	CDMA 2000 EV-DO Rev A, WCDMA, individual 3G uplink/backup link
Basic feature	DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, Sub interface management
DC power	-48 V - -60 V
Device switching capacity	80 Gbps
Dimensions (height x width x depth)	88.1mm x 442 mm x 470 mm
DSP slots	3
Fixed WAN ports	3xGE (1x combo port)
Flash memory	2 GB/4 GB
Forwarding capacity	2 Mbps (With SRU40)2.5 Mpps (With SRU60)4 Mbps (With SRU80)
Frequency	50/60 Hz
IPv4 unicast routing	Routing policy, static route, RIP, OSPF, IS-IS, BGP
IPv6 unicast routing	Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+
LAN	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP
Management and maintenance	Upgrade management, device management, GTL, SNMP(v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, NetConf, CLI
Maximum power	350 W(Single Power Module)/700 W(Dual Power Module)
Memory	2 GB
Mini-USB ports	1
MPLS	LDP, MPLS L3 VPN, static LSP, dynamic LSP
Multicast	IGMP V1/V2/V3, IGMP-Snooping V1/V2/V3, PIM SM, PIM DM, MSDP
Operating temperature	0 C to 40 C
Power supply(AC)	100V to 240V
QoS	Diffserv mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), HQoS, FR QoS
Relative humidity	5% to90% (noncondensing)
Security	ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing
Serial auxiliary/console port	1
SIC slots	4
USB 2.0 ports	2
Voice	RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call
VPN	IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN
WAN speed with services	600 Mbps (With SRU40)800 Mbps (With SRU60)1800 Mbps (With SRU80)
Weight	8.95 kg
WLAN(AC)	AP management(AC discovery/AP access /AP management), CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n, WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management)
